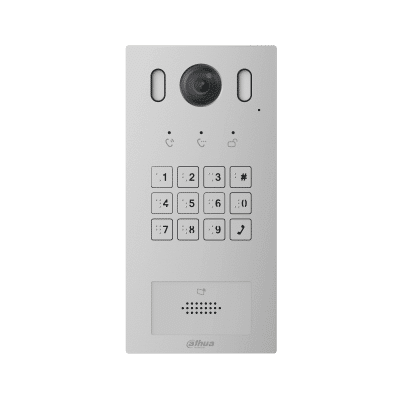

DaHua IP Intercom Door Bell – Villa Outdoor Station – DHI-VTO3221E-P

Save 45%

Price:
Sale price$331.40 Regular price$601.00

Description



Technical Specification
Model VTO3221E-P
System
Main Processor Embedded Micro Processor
Operation System Embedded LINUX OS
Video
Video Compression H.264
Image Sensor 1/2.9” 2MP CMOS
Auto Gain Control White Light
Lens 2mm
Angle of View H:140° V:82°
Day/Night Color Image
Audio
Audio Compression G.711
Audio Input Omnidirectional Mic
Audio Output Built-in Speaker
Bidirectional Talk Support Dual-way Bidirectional talk
Display
Screen 2.3” OLED
Operation Mode
Keypad Mechanical Button with Braille
Reader Mifare Card (13.56MHz)
Interface
Alarm In/Out 1/1
Door Control 1 Relay Out1 RS485



1 Feedback

1 Exit Button

Wiegand In 1
Network
Ethernet 10M/100Mbps
Network Protocol TCP/IP
General
Ingress Protection IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Tamper Switch 1
Installation Surface & Flush
Material Aluminum
Power DC 12V, 2A, PoE(802.3af)
Power Consumption Standby ≤2W, Work ≤7W
Working Temperature ﹣40°C~+60°C
Relative Humidity 20%~95%RH
Dimensions 200mm×98mm×32mm
Weight 1.5Kg



Datasheet

User Manual
