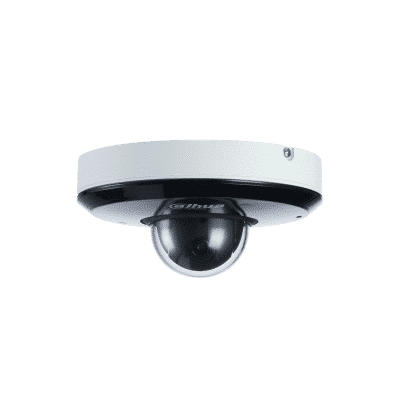

Dahua 4MP 4x Starlight IR PTZ AI CCTV Network Camera – DH-SD1A404XB-GNR-PTZ

Dahua 4MP 4x Starlight IR PTZ AI CCTV Network Camera – DH-SD1A404XB-GNR-PTZ

$370.00 AUD
$711.00 AUD $370.00 AUD
Sale Sold out
Shipping calculated at checkout.
Camera
Image Sensor 1/2.8″ STARVIS™ CMOS
Effective Pixels 4MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 4GB
RAM 1GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005Lux@F1.8
B/W: 0.0005Lux@F1.8
0Lux (IR light on)
IR Distance 15 m (49.21 ft)
IR On/Off Control Zoom Prio/Manual/SmartIR
IR LEDs Number 3
Lens
Focal Length 2.8 mm–12 mm
Max. Aperture F1.8–F2.7
Field of View H: 31.6°–96.9°
V: 17.8°–51.4°
D: 36.4°–116.2°
Optical Zoom 4x
Focus Control Auto/Semi-Auto/Manual
Close Focus Distance 0.2 m–0.5 m (0.66 ft–1.64 ft)
Iris Control Auto
DORI Distance Detect Observe Recognize Identify
147.0 m (482.28 ft) 58.8 m (192.91 ft) 29.4 m (96.46 ft) 14.7 m (48.23 ft)
PTZ
Pan/Tilt Range Pan: 0°–355°
Tilt: 5°–90°
Manual Control Speed Pan: 0.1°/s–70°/s
Tilt: 0.1°/s–30°/s
Preset Speed Pan: 80°/s
Tilt: 40°/s
Presets 300
Tour 8 (up to 32 presets per tour)
Speed Adjustment Support
Power-off Memory Support
Idle Motion Preset/Tour
General Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Artificial Intelligence
People Counting Count people in the area; generate report
Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection Support
SMD Plus Support
Video
Compression H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG (Sub Stream); H.265+; H.264+
Streaming Capability 3 streams
Resolution 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 x 720); D1 (704 x 576/704 × 480); CIF (352 x 288/352 × 240)
Frame Rate Main stream: 4M/3M (1–25/30fps), 1080P/1.3M/720P (1–25/30fps)
Sub stream 1: D1/CIF (1–25/30fps)
Sub stream 2: 720P (1–25/30fps), D1/CIF (1–25/30fps)
Bit Rate Control Variable Bit Rate/Constant Bit Rate
Bit Rate H.264/H.265/MJPEG: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Support
WDR 120 dB
HLC Support
White Balance Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Motion Detection Support
Region of Interest (RoI) Support
Electronic Image Stabilization Support
Electronic Defog Support
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Up to 24 areas, and up to 8 areas in the same view
Audio
Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability ONVIF; CGI
Streaming Method Unicast/Multicast
User/Host 20
Edge Storage FTP; Micro SD card (256G); P2P
Browser IE; Chrome; Firefox; Safari (no version restriction)
Management Software SmartPSS
DSS
Smart Phone iOS/Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio In 1
Audio Out 1
Power
Power Supply DC12V/1.5A±15%
PoE (802.3af)
Power Consumption 3W
8.5W (IR on)
Environment
Operating Temperature -30°C to +60°C (-22°F to 140°F)
Operating Humidity ≤95%
Ingress Protection IK08; IP66; TVS 6000V lightning proof; surge protection
Structure
Casing Metal
Dimensions Φ128.0 mm × 65.4 mm (5.04″ × 2.57″)
Net Weight 0.485 kg (1.06 lb)
Gross Weight 0.7 kg (1.54 lb)
