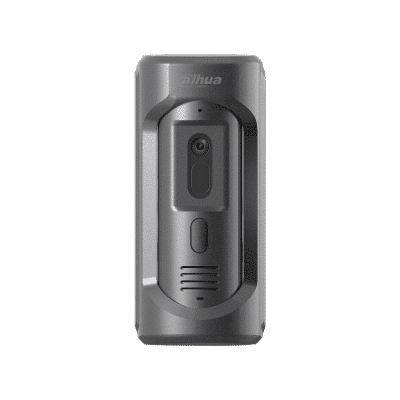

DaHua IP Intercom Door Bell – Villa Outdoor Station – DHI-VTO2101E-P-S1

Save 46%

Price:
Sale price$199.00 Regular price$368.00

Description

Technical Specification
Model VTO2101E-P-S1
System
Main Processor Embedded Micro Processor
Operation System Embedded LINUX OS
Camera
Image Sensor 1/2.7” 2MP CMOS
Focal Length 2.8mm
Angle of View H:77°, V:55°, D:100°
Angle of View adjustment Horizontal: -45° – +45°
Video
Video Compression H.264
Video Streaming Dual Stream
Day/Night Auto(ICR), 5m
BLC Mode WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
OSD Support
Audio
Audio Compression G.711
Audio Input Omnidirectional Mic
Audio Output Built-in Speaker
Bidirectional Talk Support Dual-way Bidirectional talk
Audio processing Noise suppression, Echo cancellation
Operation Mode
Keypad 1 Mechanical Button
Interface
Door Control 1
Alarm In 1
RS485 1
Network
Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP, SIP
General
Ingress Protection IK10, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Tamper Switch 1
Tamper Screw Support
Installation Surface
Material Front Panel: Zinc alloyRear Panel: Aluminum alloy



Holder: Aluminum alloy

Power DC 12V, PoE(802.3af)
Power Consumption Standby ≤2.5W, Work ≤7W
Working Temperature ﹣30°C to +60°C
Relative Humidity 10%RH–90%RH
Dimensions 163.0mm×73.0mm×54.5.0mm
Weight 0.8kg



Datasheet

User Manual
