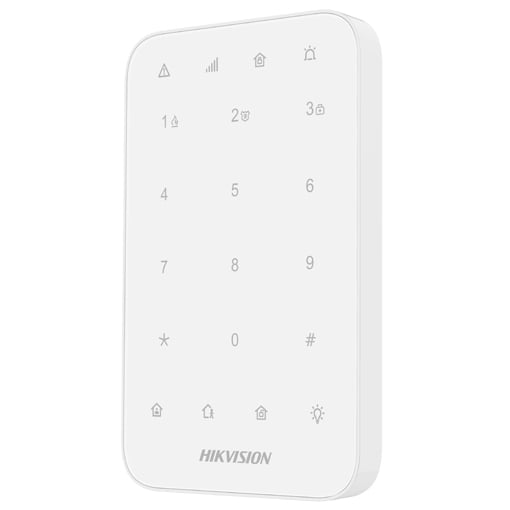

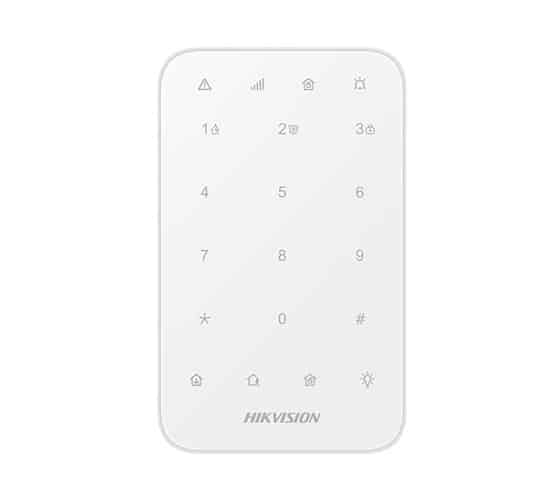

Hikvision – DS-PK1-E-WB – AX Pro Wireless Keypad

The DS-PK1-E-WB series wireless keypad can connect to AX Pro for alarm control and operation. It can also notice alarm by indicator and buzzer.

Features
● 433 MHz two-way wireless communication
● AES-128 encryption
● Stay/away arming, disarming, alarm clearing for specified area or all areas
● LED indicates the programmed area
● One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
● Output control
● Full touch key design with LED backlight
● Fully remote configurable through App
● Multiple enrollment methods and easy installation design
● Easy replaceable battery
● Frequency hopping against jamming for reliable transmission

Available Models
DS-PK1-E-WB (433MHz)

Hikvision LED Keyboard

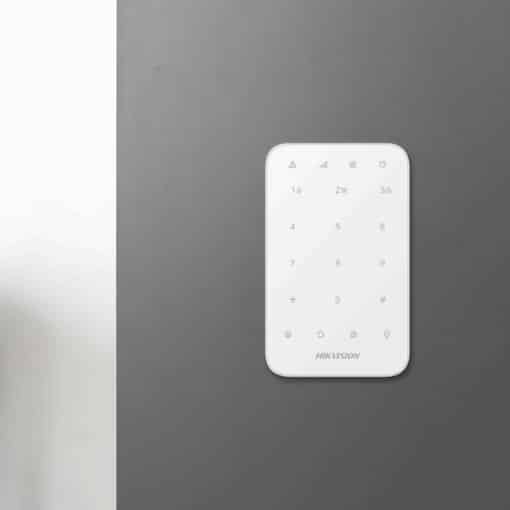

Hikvision Wireless LED Keypad is intended for mounting inside on a wall at entrance doors.

The wireless Hikvision LED Keyboard has the model number DS-PK1-E-WE and is intended to be able to switch the Hikvision AX Pro alarm system on and off using a code. The keypad is protected against sabotage, has low battery control and checks the connection to the Hikvision Hub very regularly. It can work with the built-in batteries for up to 5 years.

Range from the Hikvision Hub

The range from the Hub to the Hikvision LED Keyboard DS-PK1-E-WE is 1,200 metres in open field. The connection is continuously monitored by the Hikvision Cloud. If the wireless signal is intentionally disturbed it will be immediately reported via the Hik-Connect app on your smartphone. The wireless Hikvision signal is called Tri-X, and operates on 2 different frequencies in the 868mhz band and has AES-128 encryption.

Login and assembly

All Hikvision products are easy to connect. Registration is done with a QR code on each device. Put the Hik-Connect app in the “Enroll” position and you can start adding products by scanning the QR code in the app.

Because the LED Keypad is intended for switching off the alarm system as soon as possible after entry, it is necessary to mount it as close as possible to the entrance door. Don’t forget to slow down the movement detector in that room to go into alarm. (e.g. with a walk-in delay of 30 seconds)

Settings of the Hikvision LED Keyboard

In addition to entering the control codes, the LED Keypad also shows which zone of the alarm system is switched on. The keypad is fully illuminated so that it can also be read and used in the dark. The full settings are made in the Hik-Connect application on your smartphone.

Battery powered

The wireless LED Keyboard, like all Hikvision products of the AX Pro alarm system, is battery operated. The LED Keyboard uses 4 penlite batteries, also known as AA batteries. All Hikvision alarm system products are therefore easy to place anywhere without having to lay cables. The lifetime of the standard supplied batteries is 5 years with normal use. After this time they are easy to replace for new ones. These batteries are always available from stock. How to replace the batteries can be found in the manual of the wireless LED Keyboard DS-PK1-E-W.
