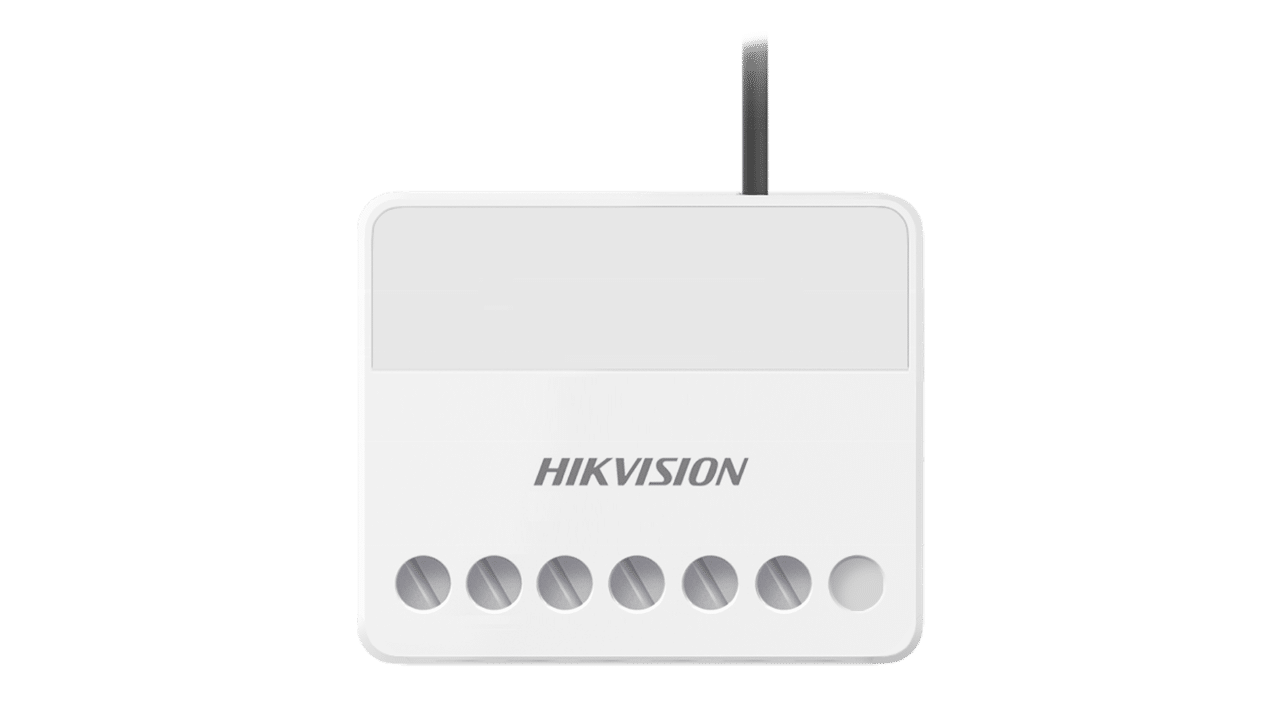

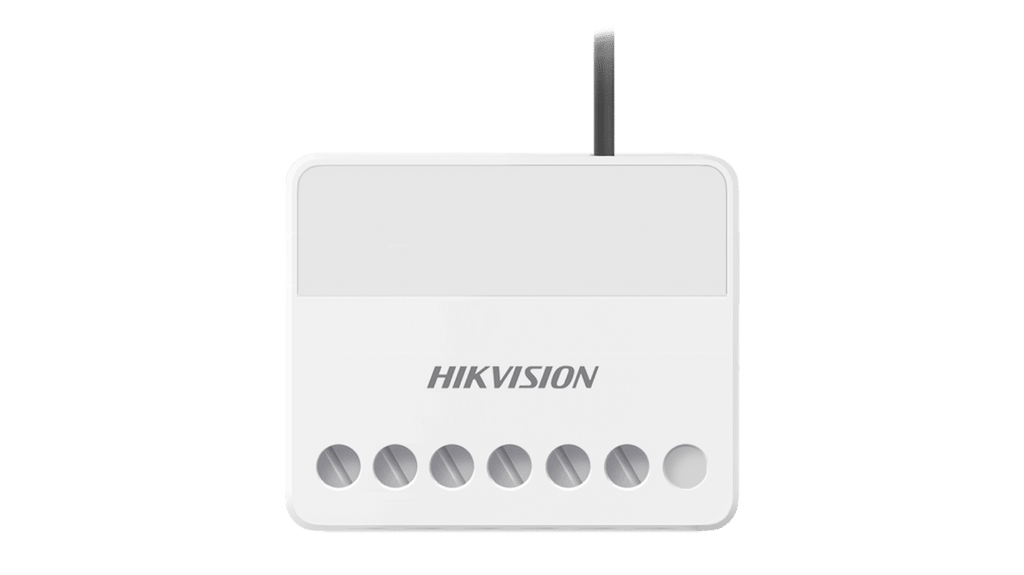

Hikvision – DS-PM1-O1L-WB – AX Pro Relay Module

Key Features

• 433MHz two–way wireless communication
• AES–128 encryption
• LED display, show status of device and replay on/off display
• Small case design, which can be put into hiding places easily
• Automation operating, one button turn on/off from APP/Keyfob/Keypad
• Setting scenarios by different events
• With one tamper input, can be used as zone input for alarm

Available Model

• DS–PM1–O1L–WB

• Learn button – 1, for registration
• Scenario setting – by alarm, by operation, by error, by schedule, by manual

• Alarm input – 1 for tampering, NO/NC
• Relay output – 1, NO/NC (0~36V DC, Max 5A)
• Serial port – 1, for fault tracing

• RF method – Two-way communication
• RF modulation – 2GFSK
• RF frequency – 868 MHz
• RF range – 1800m
• Wireless security – AES-128

• Power supply – DC 7V – 24V

• Status LEDs – 3, register/signal (green/red), power supply (green), relay status (blue)

• Operating Temperature – -10℃~+55℃
• Operating humidity – 10％～90％
• Shell material – plastic
• Dimension (WxHxD) – 38x25x18mm
• Weight – 28.5g
• Colour – White
