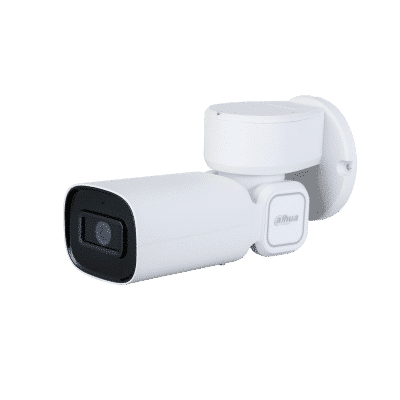

DaHua 2MP Starlight IR PTZ CCTV Network Camera – DH-PTZ1C200UE-GN-0360
DaHua 2MP Starlight IR PTZ CCTV Network Camera – DH-PTZ1C200UE-GN-0360
Regular price
$220.50 AUD
Regular price
$416.00 AUD
Sale price
$220.50 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ STARVIS™ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixels | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 256MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | 1/3–1/30000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Illumination | Color: 0.005Lux@F2.0 B/W: 0.0005Lux@F2.0 0 Lux (IR light on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Distance | 20m (65.6ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR On/Off Control | Manual/SmartIR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR LED Number | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 3.6mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aperture | F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 84.22°; V: 45.8° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 0.9m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Fixed Iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 55.2 m (181.10 ft) | 22.1 m (72.51 ft) | 11.0 m (36.09 ft) | 5.5 m (18.04 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt Range | Pan: 0°–180°; Tilt: -5°–55° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manual Control Speed | Pan: 6°/s; Tilt: 3°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire; Intrusion; Object Abandoned/Missing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Advanced Intelligence | Face Detection; Heat Map | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Streaming Capability | 3 Streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1080P (1920 ×1080); 1.3M (1280×960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main Stream: 1080P/1.3M/720P(1–25/30fps) Sub Stream 1: D1/CIF(1–25/30fps) Sub Stream 2: 720P/D1/CIF(1–25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 216Kbps–8192Kbps H.265: 108Kbps–8192Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | ICR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 2D/3D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Image Stabilization | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Electronic Defog | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Zoom | 16x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio In | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Out | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 1 RJ-45 Port 10/100Base-T | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF; CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Streaming Method | Unicast/Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth 48M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Edge Storage | FTP; Micro SD card (256G); P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE7 and newer versions Chrome 42 and older versions Firefox 52 and older versions Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart player Configtool SMART PSS DMSS DSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | DC12V/1.5A±10% (optional) POE (802.3af) (optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | 7W 11W (PTZ, IR light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –30°C to +60°C (–22°F to 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | ≤95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ingress Protection | IP66; TVS 4000V lightning protection; surge protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Housing Material | Aluminium alloy ADC12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | Wall mounted: 195.3 mm×90 mm×102.7 mm (7.69″×3.54″×4.04″) Ceiling mounted: 190.8 mm×90 mm×112.2 mm (7.51″×3.54″×4.12″)” |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | Net Weight: 0.9 kg (1.98 lb);Gross Weight: 1.2 kg (2.65 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
