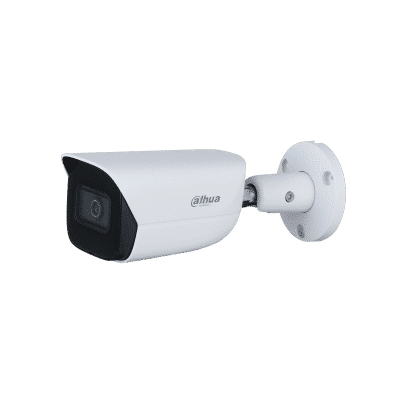

Dahua 4MP Lite AI IR Fixed focal Bullet Network Camera – DH-IPC-HFW3441EP-AS-0280B

Dahua 4MP Lite AI IR Fixed focal Bullet Network Camera – DH-IPC-HFW3441EP-AS-0280B

$173.46 AUD
$333.00 AUD $173.46 AUD
Sale Sold out
Shipping calculated at checkout.
Camera
Image Sensor 1/3”4Megapixel progressive CMOS
Effective Pixels 2688 (H) ×1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux@F1.6
IR Distance 50 m (164.0 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 1 (IR LED)
Pan/Tilt/Rotation Range Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°
3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100°
6 mm: Horizontal:52°; vertical: 28°; diagonal: 61°
Iris Type Fixed aperture
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 56.0 m(183.7 ft) 22.4 m(73.5 ft) 11.2 m(36.8 ft) 5.6 m(18.4 ft)
3.6mm 80.0 m(262.5 ft) 32.0 m(105.0 ft) 16.0 m(52.5 ft) 8.0 m(26.3 ft)
6mm 120.0 m (393.7 ft) 48.0 m(157.5 ft) 24.0 m(78.7 ft) 12.0 m (39.4ft)
Professional, Intelligent
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726; AAC
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation Yes
User/Host 20 (Total bandwidth: 64 M)
Edge Storage FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS
Browser IE: IE8, IE9, IE11Chrome



Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1-channel (RCA port)
Audio Output 1-channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <5.4W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67
Structure
Casing Metal
Dimensions 192.7 mm × 70.5 mm × 66.4 mm(632.2″ × 231.3″ × 217.8″) (L × W × H)
Net Weight 590 g (1.3lb)
Gross Weight 780 g (1.7lb)
