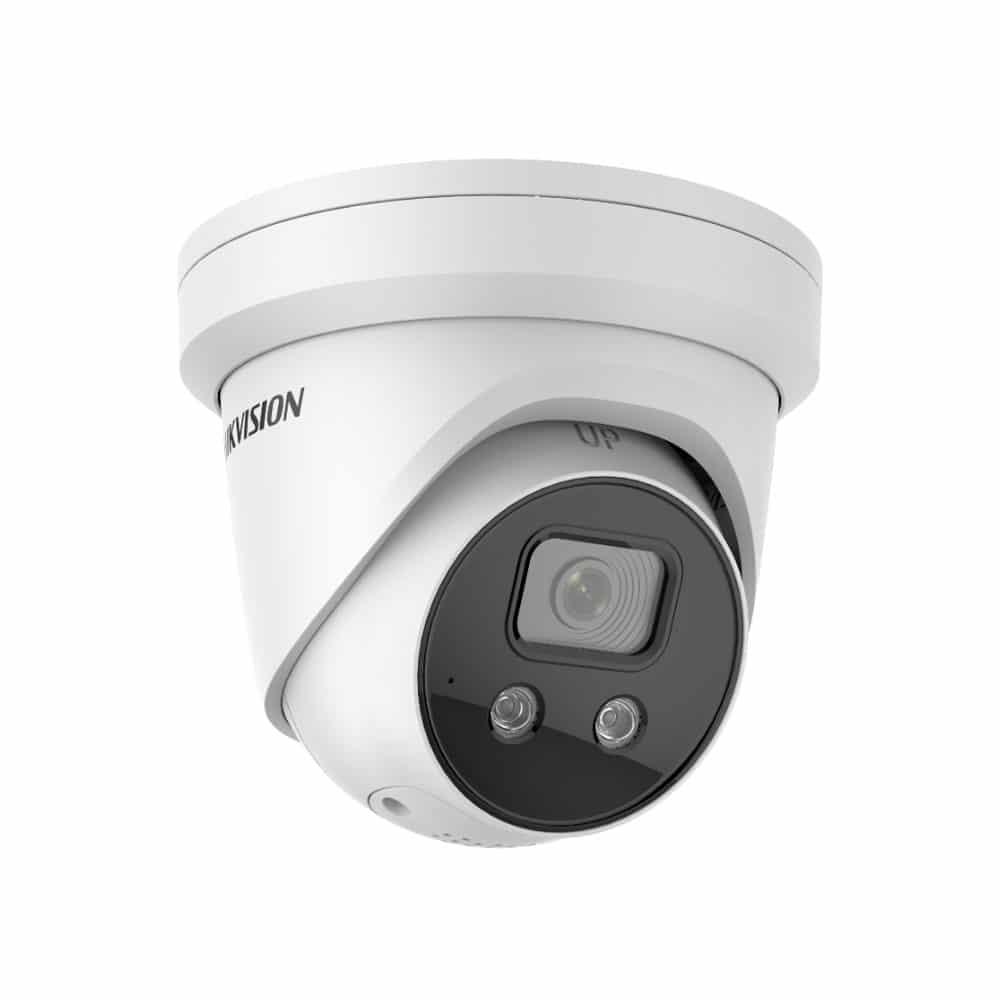

Hikvision Acusense DS-2CD2346G2-ISU-SL IP CCTV Security Camera 4MP 2.8mm Lens (Inbuilt Audio Speaker & Strobe)

Camera
Image Sensor1/3″ Progressive Scan CMOS
Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
P/NP/N
Wide Dynamic Range120 dB
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
Iris TypeFixed
Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
ApertureF1.4
Lens MountM12

DORI
DORI

2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m

6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator
Supplement Light TypeIR
IR RangeUp to 30 m
IR WavelengthYes
Smart Supplement LightYes
Visual AlarmYes

Video
Max. Resolution2688 × 1520
Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main Stream supports
H.265+Main stream supports
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

SNR≥ 52 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-in MicrophoneYes
Built-in SpeakerPower: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventScene change detection

Deep Learning Function
Face CaptureYes
Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection

General
Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email
Web Client Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software ResetYes
Firmware VersionV5.5.112
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, reverse polarity protection

PoE: 802.3af, Class 3
Power Consumption and Current

12 VDC, 0.65 A, max. 7.8 W

PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.8 W
Power InterfaceØ5.5 mm coaxial power plug
Camera DimensionØ138.3 mm × 124.5 mm (Ø5.4″ × 4.9″)
Package Dimension170 mm × 170 mm × 150 mm (6.9″ × 6.9″ × 5.9″)
Camera WeightApprox. 825 g (1.8 lb.)
With Package WeightApprox. 1120 g (2.5 lb.)

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety

UL (UL 60950-1);

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );

CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );

BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);

LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
