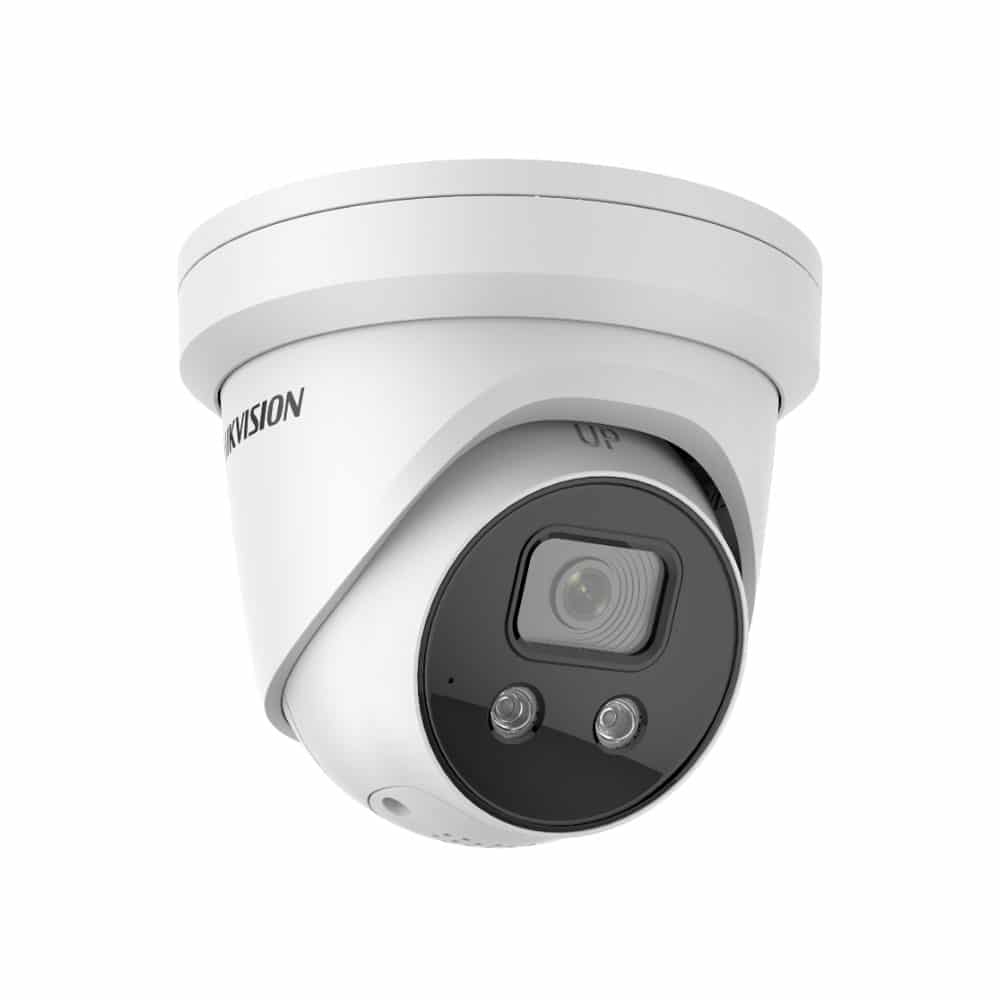

Hikvision – DS-2CD2386G2-ISU-SL – 8MP Acusense 2.8mm IP CCTV Security Camera 4K With Audible Warning & amp, Strobe Turret with Dark Fighter Technology

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
• Iris Type Fixed
• Focal Length & FOV
• 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
• 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
• 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
• ApertureF1.6
• Lens MountM12
• DORI
• 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
• 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
• 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
• Illuminator
• Supplement Light Type IR
• IR Range Up to 30 m
• IR Wavelength850 nm
• Smart Supplement Light: Yes
• Visual Alarm: Yes

Video

• Max. Resolution3840 × 2160
• Main Stream
• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3840 × 2160)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream
• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Third stream is supported under certain settings.
• Video Compression
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Third stream is supported under certain settings.
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Audio Type Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage\MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• SNR≥ 52 dB
• Target Cropping: Yes
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

• 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
• 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
• 1 built-in speaker, 1 built-in microphone
• Built-in Microphone: Yes
• Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
• On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Yes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Scene change detection

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Supports human and vehicle targets classification

General

• Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
  Web Client Language
• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset: Yes
• Firmware VersionV5.5.112
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply
• 12 VDC ± 25%, reverse polarity protection
• PoE: 802.3af, Class 3
• Power Consumption and Current
• 12 VDC, 0.75 A, max. 9 W
• PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W
• Power InterfaceØ5.5 mm coaxial power plug
• Camera Material Metal except for trim ring
• Camera DimensionØ138.3 mm× 124.5 mm (Ø5.4″ × 4.9″)
• Package Dimension170 mm × 170 mm × 150 mm (6.9″ × 6.9″ × 5.9″)
• Camera Weight Approx. 840 g (1.9 lb.)
• With Package Weight Approx. 1160 g (2.6 lb.)

33 languages:

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
