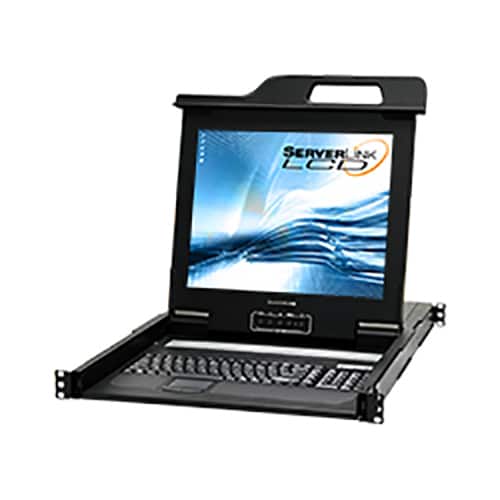

ServerLink 17 inch LCD Console Drawer with 8 Port KVM Optional IP access

Product Brief
The ServerLink LKS-08H17S is a 1U slide out 17″ LCD console drawer with an integrated 8 port KVM that allows you to control and manage servers in your data centre, server room or wherever rack space is at a premium.

The self-locking rails when in the fully extended open position and the ultra convenient self-locking auto release when the LCD panel is closed, make for simple and hassle free operation.

With a full size keyboard, touch pad and an A-Grade 17″ TFT LCD panel housed in an industry standard 1U height rack drawer, the LKS-08H17S saves you up to 70 per cent of valuable space in your rack cabinet. The 8 port KVM supports both USB and PS/2 inputs on your servers, offering maximum compatibility and flexibility within your data centre.

An optional expansion slot allows you to add a KVM over IP module to enable remote bios level access to your servers from anywhere in the world using a standard web browser.

Features
• Ideal for data centres or server rooms where rack space is at a premium
• A-Grade 17″ TFT LCD panel with maximum resolution of 1280 x 1024
• LCD panel protected by tempered glass
• Full size keyboard and touch pad
• Quick and simple installation
• Self-locking and auto release sliding rails for ultra convenience
• Supports rack cabinets with depths from 525mm to 950mm (front rails to rear rails)
• Internal AC adapter eliminates messy external AC power supplies
• Integrated 8 Port KVM with support for both USB and PS/2 servers
• Port selection via front panel panel push buttons or On-Screen-Display (OSD)
• Dedicated daisy chain port to allow for expansion of up to 64 servers
• Provides Access Control List (ACL) security function for up to 8 independent user accounts
• Optional expansion slot for KVM over IP module
• 8 x HD15 Pin Female connectors (VGA/USB & PS/2 integrated into one connector)
• 1 x HD15 Pin Female connector for daisy chaining to additional KVM switches
• AC Power In: 100V~240V @50/60Hz
• Dimensions: 448mm (W) x 42mm (H) x 580mm (D)
• Certifications: FCC, CE, C-Tick

Unit Weight: 13.6 kg
